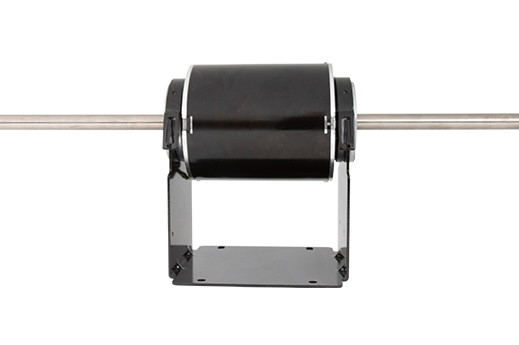

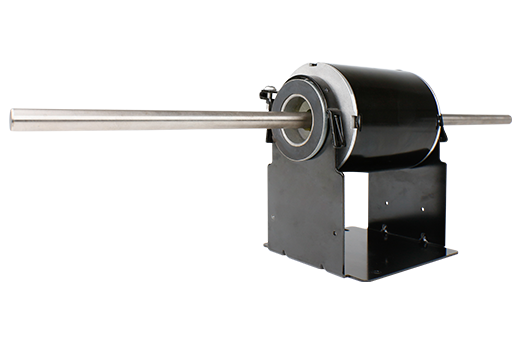

D01082003
Outer Diameter
85mm
Rated Voltage
24Vdc / 48Vdc
115Vac / 230Vac
115Vac / 230Vac
Temperature Range
-10°C to 55°C
Efficiency
≥80%
Output Power
30~120W
Rated Speed
300~3000 rpm
Direction of Rotation
CW / CCW
Motor Protection
Locked Rotor Protection
OCP / OTP / OVP
OCP / OTP / OVP
Command input
VSP(0~5V / 0~10V)
PWM
3 taps / 5tps+
PWM
3 taps / 5tps+
Insulation Class
Class B / Class E
