Home
DC MOTOR
OD 120 Series (NEMA 42)

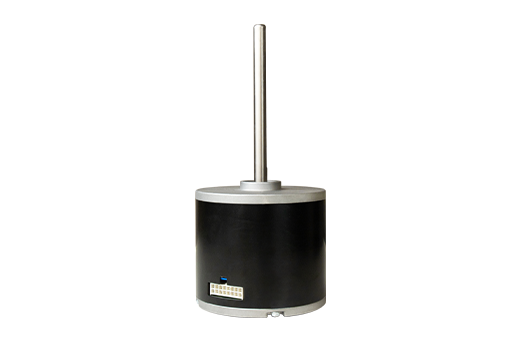

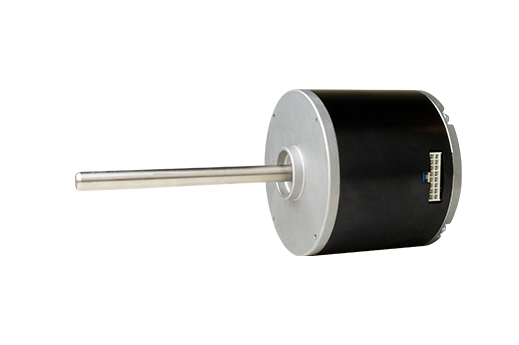

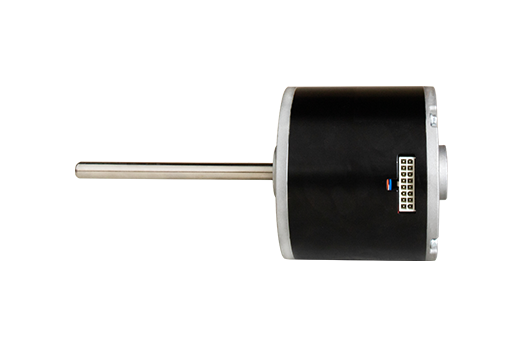

D01120002
Outer Diameter
124mm
Rated Voltage
115Vac / 230Vac / 277Vac
*Tri- Voltage EC Motors
Temperature Range
-10°C to 55°C
Efficiency
≥80%
Output Power
37~250W
Rated Speed
300~4000 rpm
Direction of Rotation
CW / CCW
Motor Protection
Locked Rotor Protection /
OCP /
OTP /
OVP
Command input
VSP(0~5V / 0~10V)
PWM
3 taps / 5tps+
Communication RS 232
Insulation Class
Class B / Class E
